Polcd 1.28 Inch IPS Circular LCD Display 240xRGBx240 Resolution Customized TFT LCD Module for Smart Watches

Name: Polcd 128 Inch IPS Circular LCD Display 240xRGBx240 Resolution Customized TFT LCD Module for Smart Watches
Brand: Polcd
Price: 1 USD

China Polcd 1.28 Inch IPS Circular LCD Display 240xRGBx240 Resolution Customized TFT LCD Module for Smart Watches factory

Brand Name : Polcd

Model Number : P128H002-IPS-CTP

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T, L/C, Credit card, PayPal, D/A, D/P, Western Union, MoneyGram

Supply Ability : 25,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Resolution : 1.28 inch 240*240

Interface : 4W SPI

Driver IC : GC9A01

Brightness (cd/m²) : 300 nit

Viewing Angle : IPS all view angle

Display area : 32.40(H)x32.40(V)mm

Contact Now

Parameter:

Model	P128H002-IPS-CTP
Screen Size	1.28 inch
Number of Pixel	240RGB(H)x240(V)
Display area	32.40(H)x32.40(V)mm
Pixel pitch	0.135(H)x0.135(V)mm
Pin	15 pin
Outline Dimension	42.50x42.50x3.60mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Display Color	262K
Luminance(cd/m2)	300 nit
Contrast Ratio	1100:1
Interface	4W SPI
Back-light	LED Side-light type
LCM Drive IC	GC9A01
CTP Drive IC	GST816T
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd 1.28 Inch IPS Circular LCD Display 240xRGBx240 Resolution Customized TFT LCD Module for Smart Watches

Product Tags:

240xRGBx240 Resolution TFT LCD Module

Customized TFT LCD Module

1.28 Inch IPS Circular LCD Display

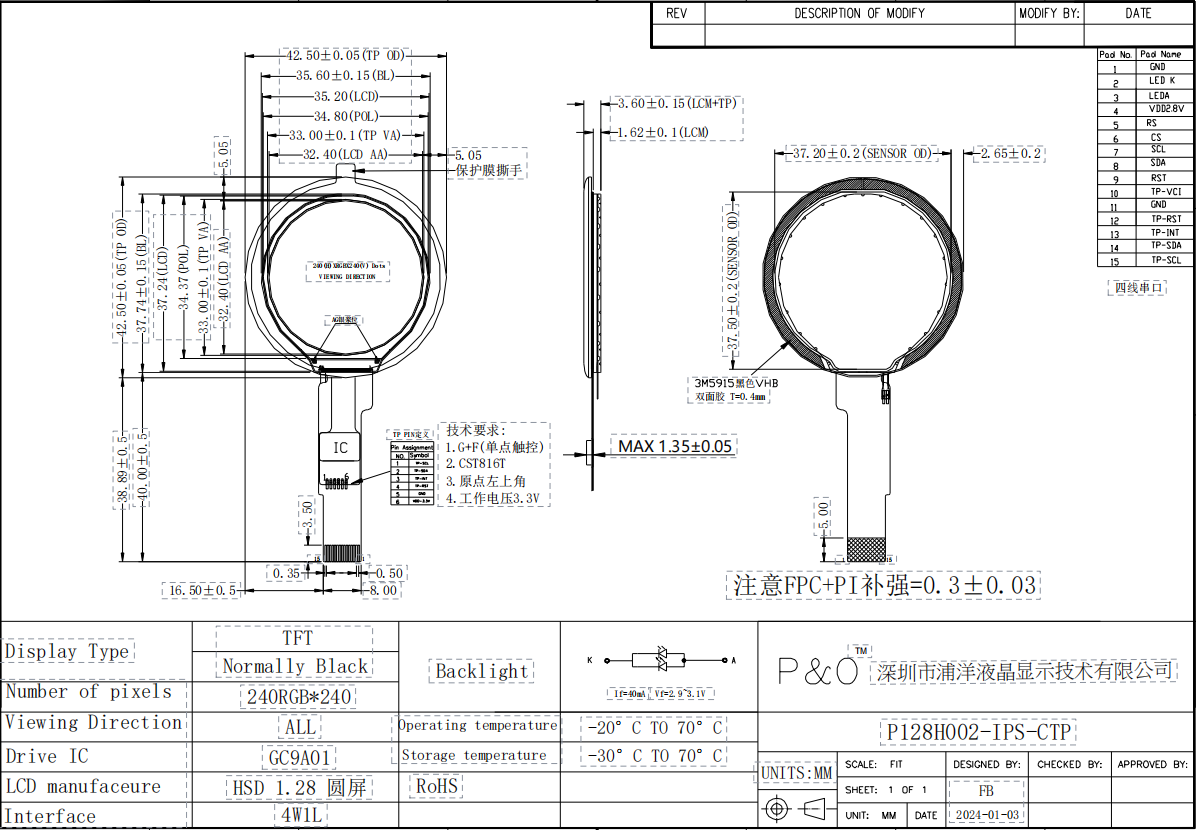

Polcd 1.28 Inch IPS Circular LCD Display 240xRGBx240 Resolution Customized TFT LCD Module for Smart Watches Images
