Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 Mcu Interface Tft Screen Module

Name: Polcd Custom 24 Inch Lcd Capacitive Touch Screen Display Panel 240320 Mcu Interface Tft Screen Module
Brand: Polcd
Price: 1 USD

China Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 Mcu Interface Tft Screen Module factory

Brand Name : Polcd

Model Number : P024B042-V2-IPS-CTP

Certification : RoHS, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Please contact us for latest price

Payment Terms : T/T,L/C,Credit card,PayPal,D/A,D/P,Western Union,MoneyGram

Supply Ability : 40,000 PCS per day

Delivery Time : 1-7 working days

Packaging Details : FCL size: 40*30*20cm / Sample Packaging: 20*18*13cm

Resolution : 240x320

Interface : MCU 8/16BIT

Driver IC : ST7789V

Brightness (cd/m²) : 450 nit

Viewing Angle : IPS all viewing angle

Display area : 36.72(H)x48.96(V) mm

Contact Now

Description of 2.4 inch TFT LCD :

2.4 inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small-size display module that uses TFT technology to provide high-quality color images and videos. The display has a diagonal screen size of 2.4 inches and a resolution of 240x320 pixels, providing clear and sharp images with accurate color representation.

Parameter:

Item	Specification
Model	P024B042-V2-IPS-CTP
Screen Size	2.4 inch
Number of Pixel	240RGB(H)x320(V)
Display area	36.72(H)x48.96(V)mm
Pixel pitch	0.153(H)x0.153(V)mm
Pins	40 pins
Outline Dimension	46.72x64.60x3.10mm
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally Black
Viewing Direction(eye)	ALL
Gray inversion direction	--
Display Color	262K
Luminance(cd/m2)	450 nit
Contrast Ratio	1200:1
Surface treatment	--
Interface	MCU 8/16BIT
Back-light	LED Side-light type
Drive IC	ST7789V
Operation Temperature	-20~70℃
Storage Temperature	-30~80℃

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 Mcu Interface Tft Screen Module

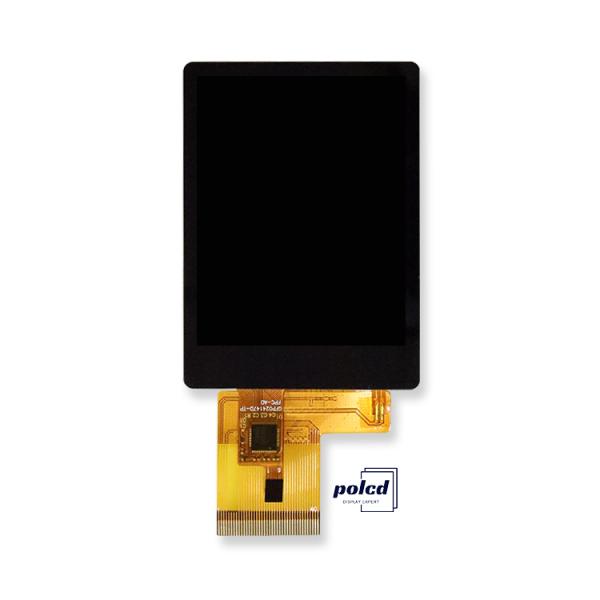

Polcd Custom 2.4 Inch Lcd Capacitive Touch Screen Display Panel 240*320 Mcu Interface Tft Screen Module Images
